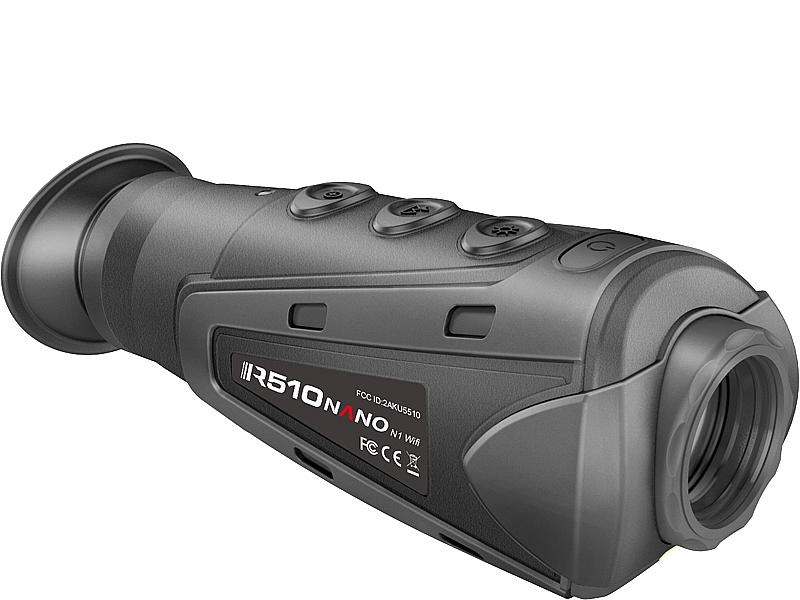

Guide Infrared IR510 NANO N2 WIFI Thermal Imaging Monocular

The IR510 Nano Series from Guide incorporates thermal technology, advanced algorithms and innovation into a compact and easy to use device. Features a 400×300 17µm thermal sensor and a LCOS colour display with 50Hz frame rate for smooth & crisp viewing and is capable of detecting a human up to 700m. Users can select from up to five different colour palettes for a more customised experience.
Thermal Sensor: 400×300 17µm
Spectral Range: 8µm-14µm
Detection Range: 700m (Human: 1.8mx0.5m), 1700m (Vehicle: 2.3mx2.3m)
Digital Zoom: 2-4x
Focus: 25mm (Manual)
Dioptre: ±4
Field of View: 14.6° x 11.1°
Display: 0.2″ LCOS Colour
Colour Palettes: Black hot, white hot, red hot 1, red hot 2, red hot 3
Frame Rate: 50Hz
Operating Temperature: -10℃ to 50℃
Protection: IP66
Drop Rating: N/A
Weight: 375g
Size: 168x67x62mm
Battery: Internal Li-Ion (3.7v, 3200mAh)
Operating Time: >5
Ports: USB (Charging) & MCX Connector (PAL/NTSC)
Adaptor: Standard USB power adaptor (Max 10w)
