Product information

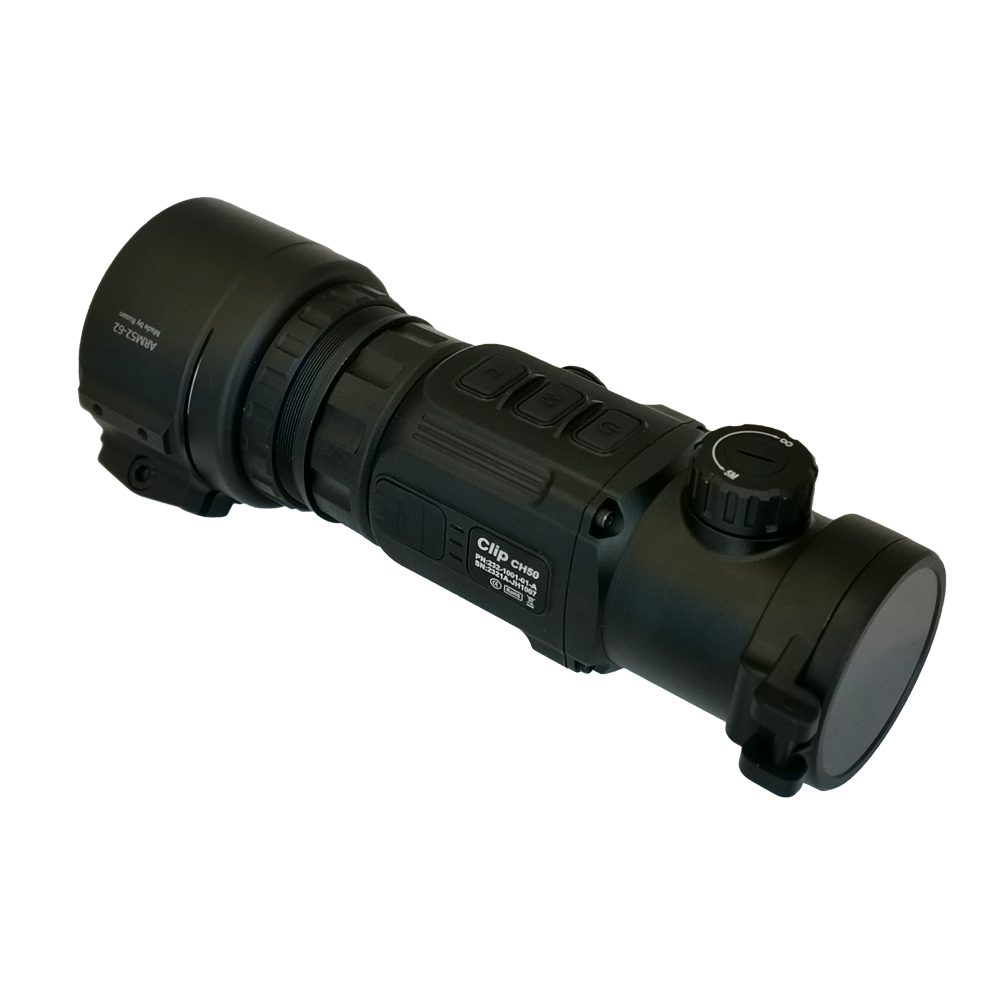

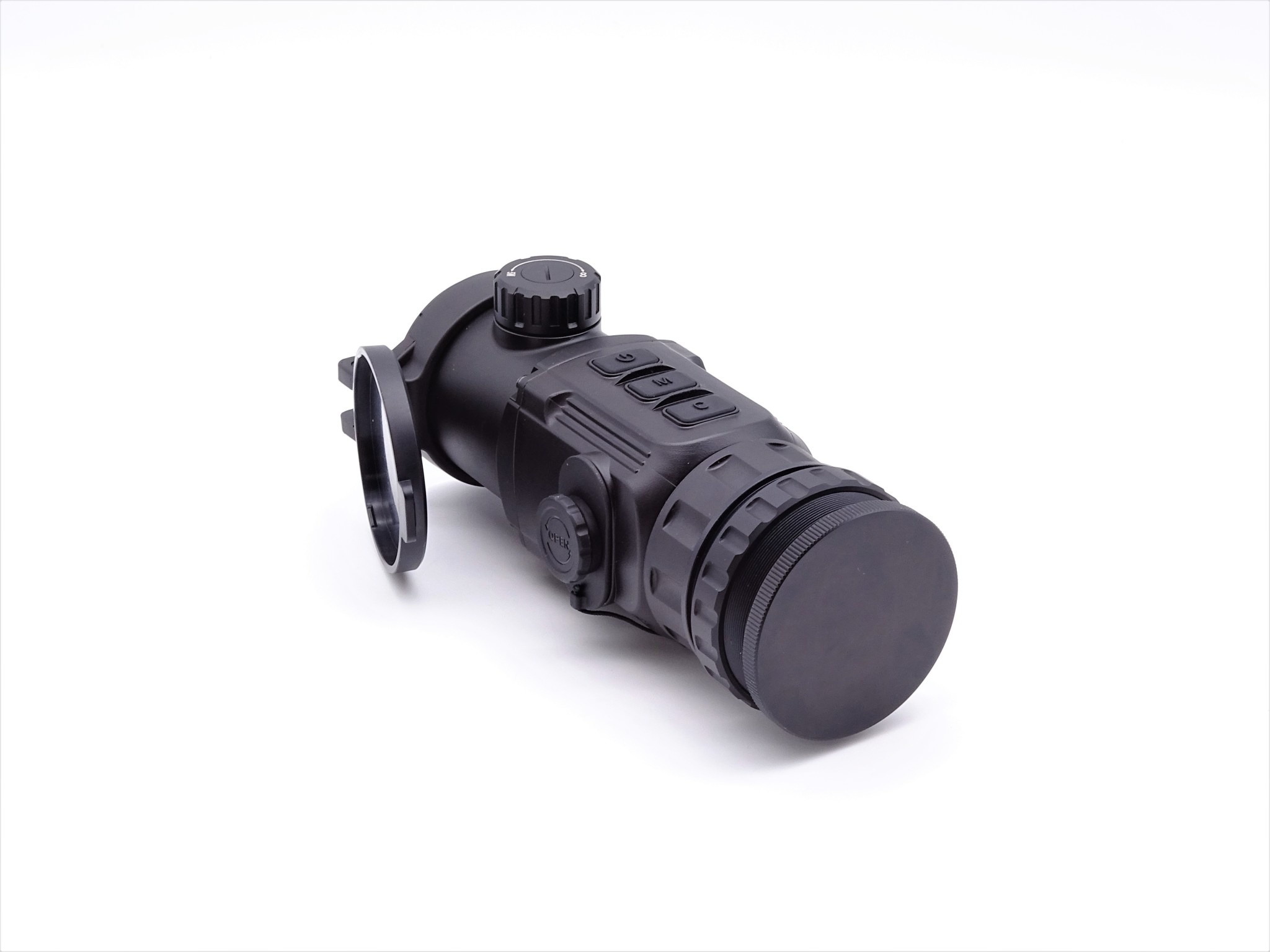

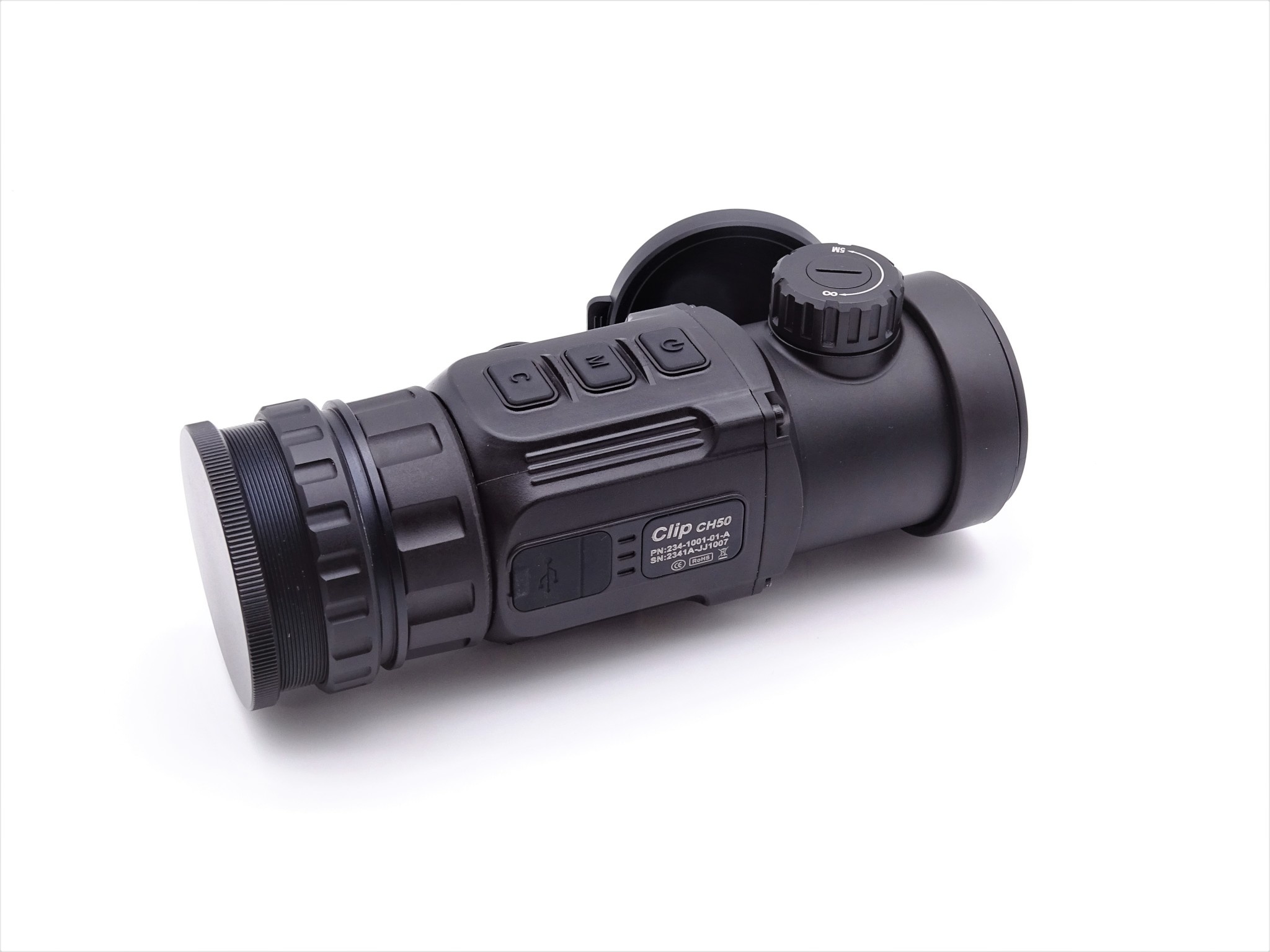

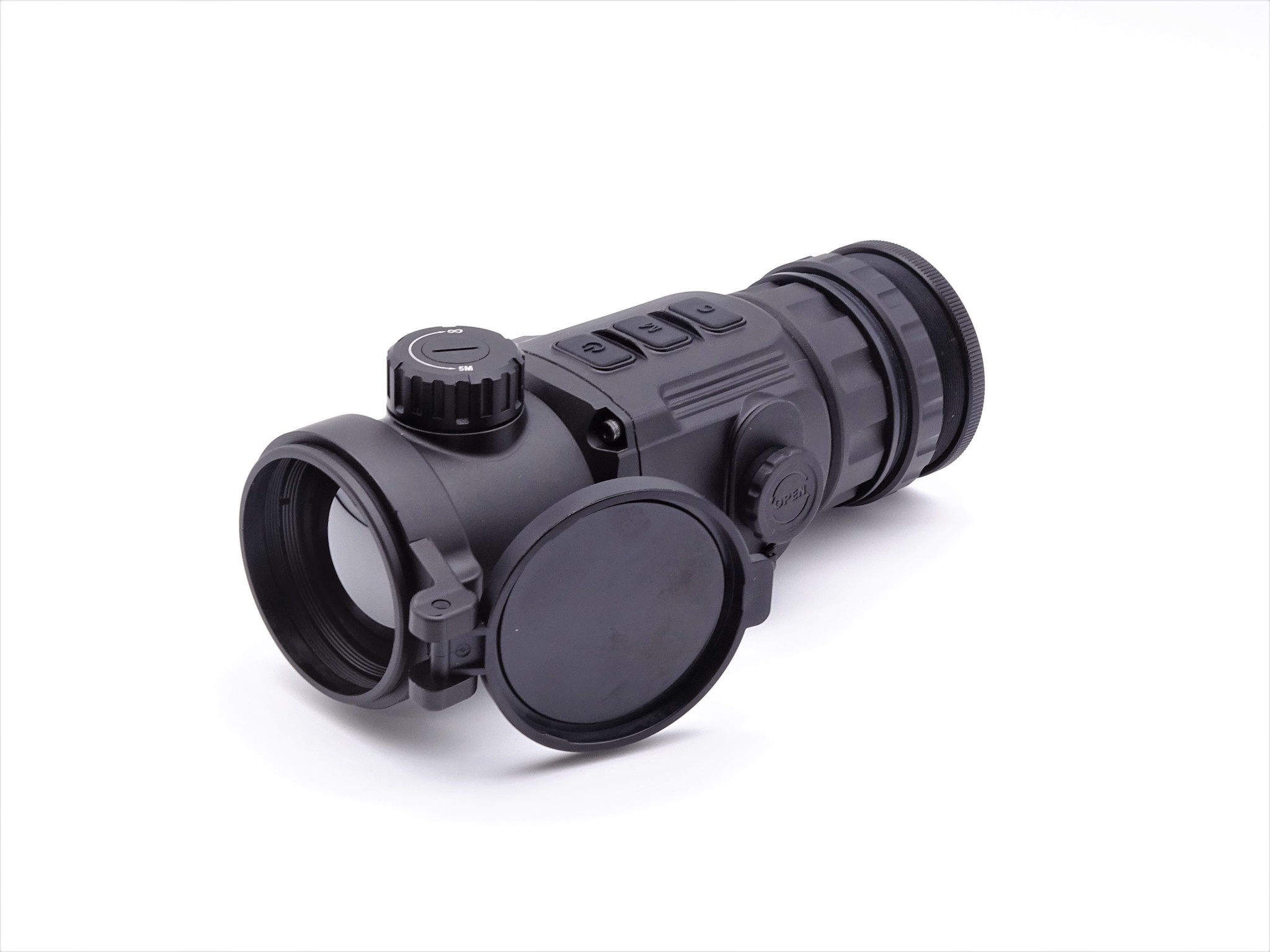

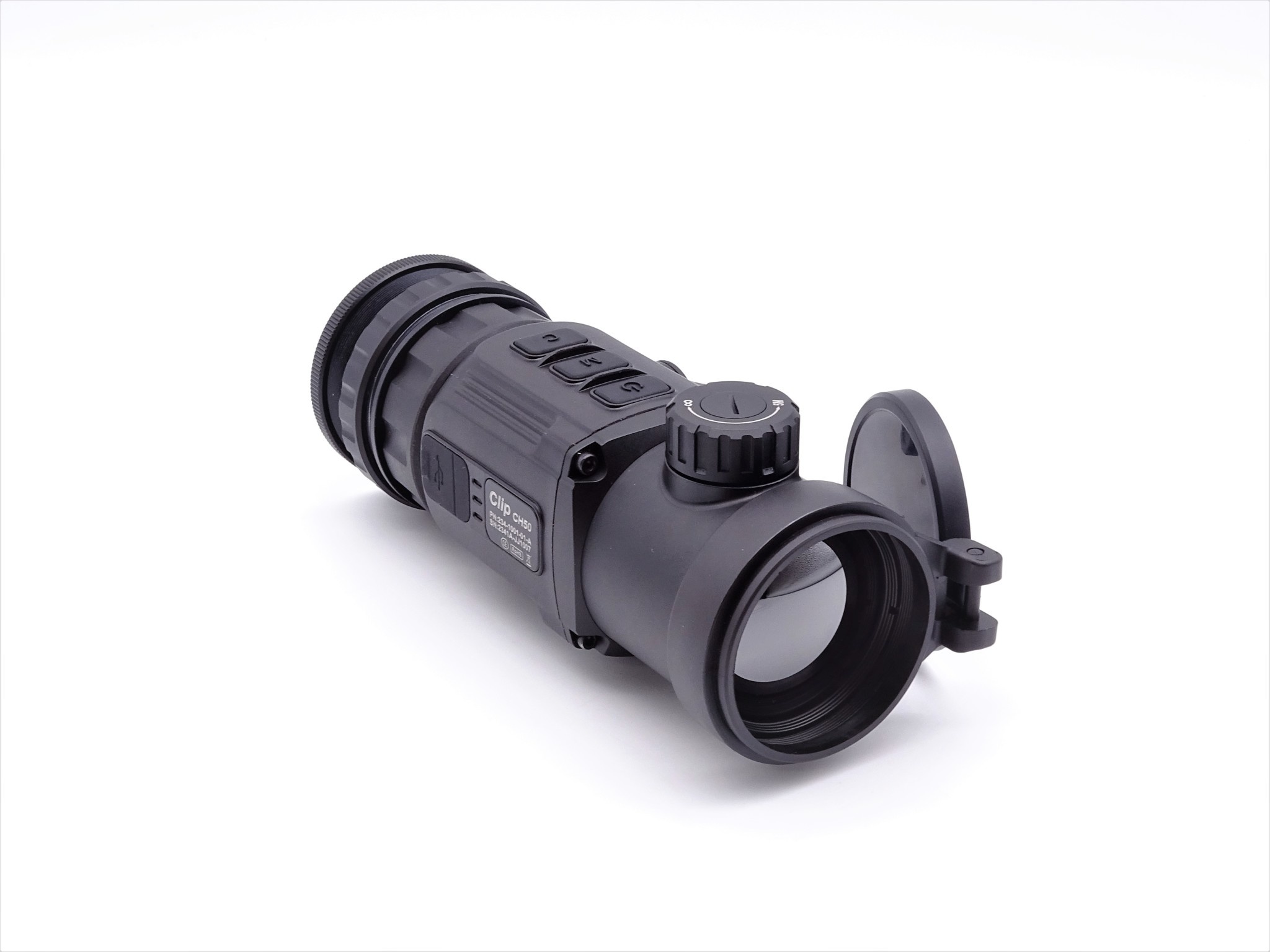

The new InfiRay CH50 thermal image clip on has an extremely high resolution detector of no less than 640 x 512 pixels.
It is currently the highest resolution compared to the competition. The new sensor technology with a pixel pitch of 12 µm ensures a razor-sharp image.
The thermal imager is designed for very long observation distances up to 2,597 meters (deer)
A high-resolution OLED screen with 1024 x 768 pixels accurately displays all the details of the detector.
The diameter of the objective is 50 mm. The Infiray CH50 Clip on mounts quickly to the adapter and no zeroing is required
The Infiray CH50 is equipped with a powerful Vox detector developed by Infiray, which allows you to obtain highly detailed thermal images. The resolution is 640 × 512 pixels. It offers excellent performance in the critical temperature range.
The CH50 thermal imager is equipped with a new ceramic detector with a pixel size of 12 m. This sensor is lighter, more energy efficient and more durable.
5 color palettes the right color for every situation
In the memory of the CH50 4 different guns can be set, this is useful for a large game combination.
Technical specifications
Resolution: 640 × 512 pixels
Pixel size: 12 m
Frame rate: 50 Hz
Objective lens: 50 mm
Field of view: 8.8 x 7.0 °
Screen: OLED 1024 × 768 pixels
Magnification: 1 x
Detection range: up to 2597 m
Power supply: 2x CR123A 3 V or 2x ICR16340 3.7 V batteries
Dimensions: 166 × 60 × 68mm
Weight: about 420 grams
